FFC | 軟排線 – PITCH 0.5
Flexible Flat Cable 軟排線
Flexible Flat Cable 軟排線
FFC軟排線間距：0.5 PTICH | UL2896,UL20624,UL2643,UL20624,UL2643
從可用4〜100 PIN
配合FFC連接
短交貨期,少量多樣,客製化生產
可特殊加工：折線，貼雙面膠(導電布，銅箔，鋁箔),打端子(地線或接線端子)
商品規格:

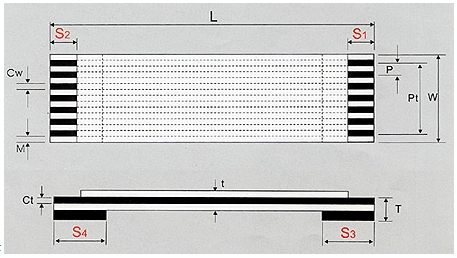

FFC軟排線間距：0.5 PTICH 規格
| Description | Abbr. | Formulation | Tolerance |
| P=0.5 | |||
| Pitch | P | Typical | ±0.05 |
| Total Pitch | Pt | Pt=(n-1)xP | ±0.08 |
| Width | W | W=(n+1)xP | ±0.08 |
| Margin | M | M=P-(Cw x1/2) | ±0.05 |
| Total (Cable) Length | L | Typical | 10-∞±2 |
| Strip Length | S1/S2 | Typical | 2-12±0.8 |
| Support Tape Length | S3/S4 | Typical | 0-30±0.8 |
| Conductor Width | Cw | Various | 0.3±0.02 |
| Conductor Thickness | Ct | Various | 0.1±0.01 |
| 0.05±0.01 | |||
| 0.08±0.01 | |||
| 0.035±0.01 | |||
| Terminal Thickness | T | Typical | 0.3±0.05 |
|
|
|
|
